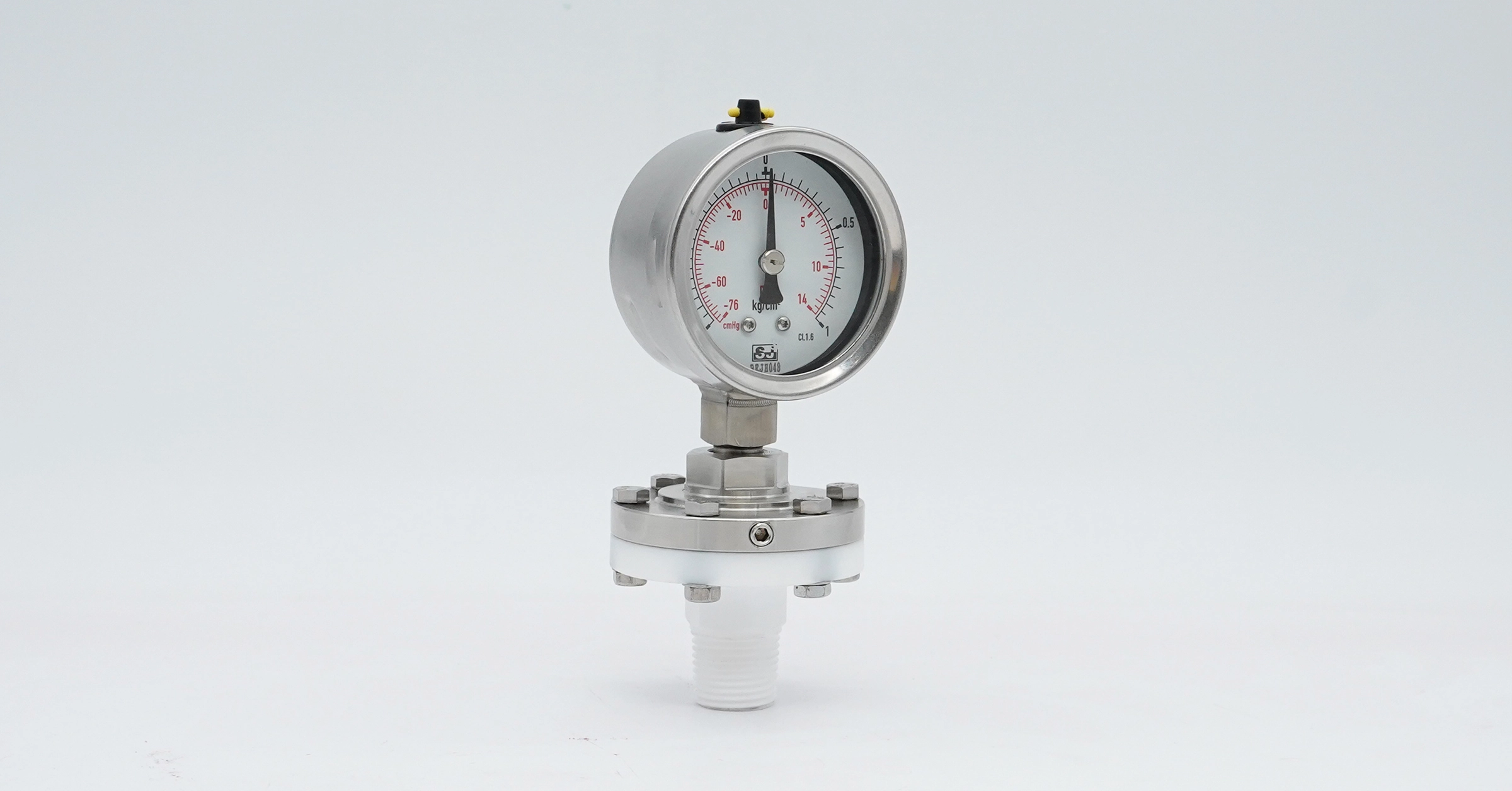

การเชื่อมต่อเกลียวโลหะส่วนบนพลาสติกล่าง
Model:DIT-USLP
คำอธิบาย:
- A metal upper body that connects to the instrument is tight and durable
- Large selection of top housings and process connections
- Ideal for processing corrosive fluids or other environmentally harmful medium
- บริการตอบสนองหลังการขาย / การรับประกันที่ปรับแต่งได้ / คุณภาพสูง / การรับประกันหนึ่งปี
- ภาพมีไว้สำหรับการอ้างอิง ผลิตภัณฑ์จริงจะขึ้นอยู่กับข้อกำหนดที่กำหนดเองของคุณ
- อ่านเพิ่มเติม: ซีลไดอะแฟรมควรรวมเข้ากับมาตรวัดความดันของคุณหรือไม่?
ดาวน์โหลดไฟล์
ข้อกำหนดผลิตภัณฑ์
左右尚有資訊
เส้นผ่าศูนย์กลาง | 70 mm, 90 mm, 130 mm, 160 mm |
---|---|
กระบวนการเชื่อมต่อ | Male, female, socket welding 1/4", 3/8", 1/2", 3/4", 1" PT, G, NPT, M |
การเชื่อมต่อเครื่องมือ | 1/4", 3/8", 1/2" pt, g, npt, m |
ช่วง | 70 mm Pressure gauge: 0 ... 4 bar to 0 ... 10 bar Transmitter: 0 ... 0.4 bar to 0 ... 10 bar 90 mm Pressure gauge: -1 ... 0 bar to -1 ... 10 bar Transmitter: 0 ... 0.01 bar to -1 ... 10 bar 130 mm Pressure gauge: 0 ... 0.25 bar to -1 ... 10 bar Transmitter: 0 ... 0.01 bar to -1 ... 10 bar 160 mm Pressure gauge: 0 ... 0.1 bar to -1 ... 10 bar Transmitter: -0.05 ... 0.05 bar to -1 ... 10 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
วัสดุ | Upper body: 304 SS, 316 SS, 316L SS, Dual phase steel, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200 Lower body: PP, PVC, PVDF, PTFE Diaphragm: PTFE, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200, Silicone, Viton, 316L+PTFE, 316L+PTFE coating |
อุณหภูมิกลาง | 0°C ... 80°C (PP/PVC), -40°C ... 140°C (PVDF), -200°C ... 260°C (PTFE) |
คนอื่น | เชื่อมกับเครื่องมือ |
