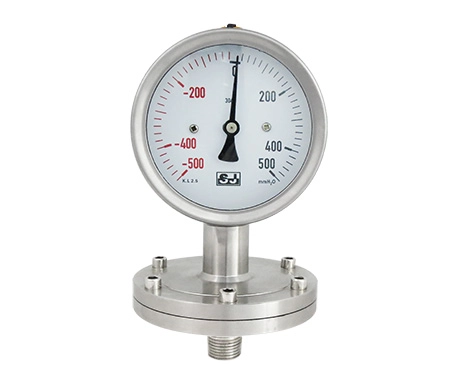

Low Pressure Gauge, Diaphragm
Model:PRSSM-LD
คำอธิบาย:
- Corrugated diaphragm design used for measuring small pressure ranges within corrosive, crystalized or viscous pressure media

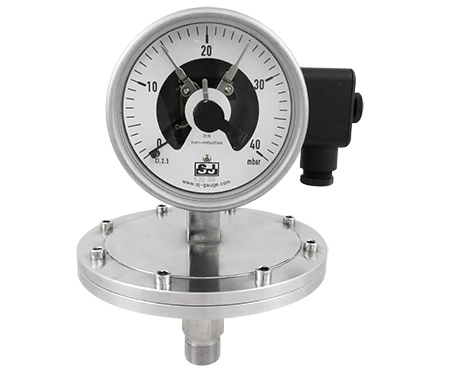

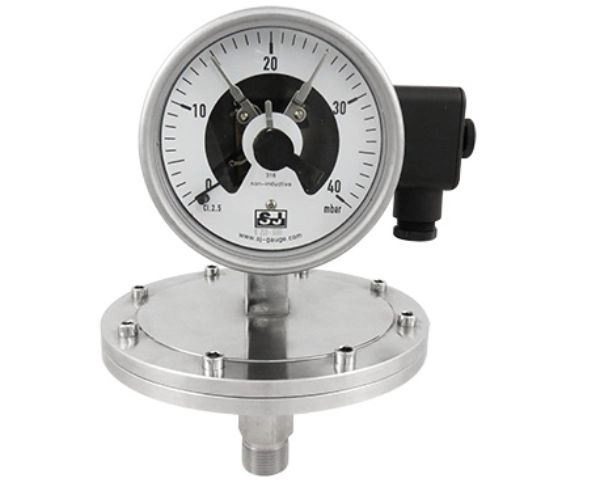

- Pressure connections include threaded and flange mounting options, or electric contacts
- Suitable for applications in the chemical, petrochemical, oil and gas industries as well as power engineering
- บริการตอบสนองหลังการขาย / การรับประกันที่ปรับแต่งได้ / คุณภาพสูง / การรับประกันหนึ่งปี
- ภาพมีไว้สำหรับการอ้างอิง ผลิตภัณฑ์จริงจะขึ้นอยู่กับข้อกำหนดที่กำหนดเองของคุณ
- อ่านเพิ่มเติม: 7 ขั้นตอนในการเลือกมาตรวัดความดัน
ดาวน์โหลดไฟล์
ข้อกำหนดผลิตภัณฑ์
左右尚有資訊
ตำแหน่งการเชื่อมต่อ | Male thread, male thread with contacts, flange type, flange type with contact |
---|---|
ขนาดเล็กน้อย | 4", 6" |
ช่วง | 0 ... 1 kPa to 0 ... 60 kPa or other equivalent units of pressure, vacuum or compound |
ความแม่นยำ | ±2.5% F.S. (standard), ±1.6% F.S. |
อุณหภูมิแวดล้อม | -20℃ ... 60℃ |
อุณหภูมิกลาง | Maximum +100℃ |
กรณี/แหวน | Stainless steel |
หน้าต่าง | Glass, safety glass |
หน้าปัด | Aluminum alloy, black scale on white |
ตัวชี้ | Black aluminum alloy |

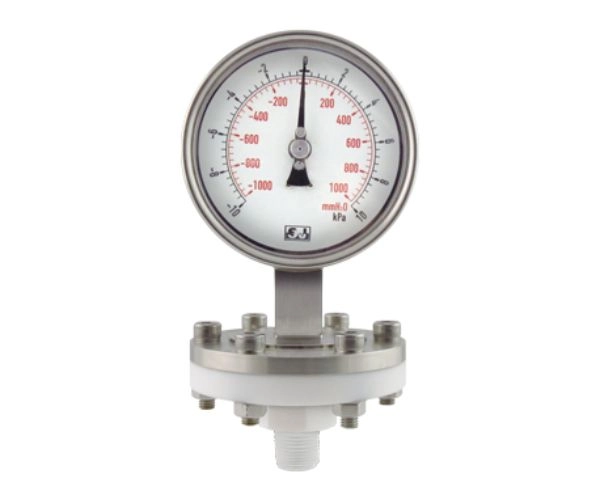

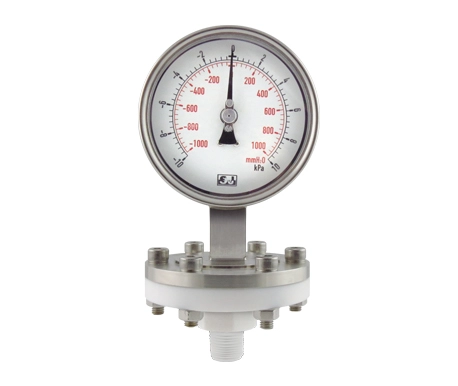

Sensor element | 316L SS (standard), hastelloy alloy, PTFE |
การแสดงผล
ภาพผลิตภัณฑ์จริง

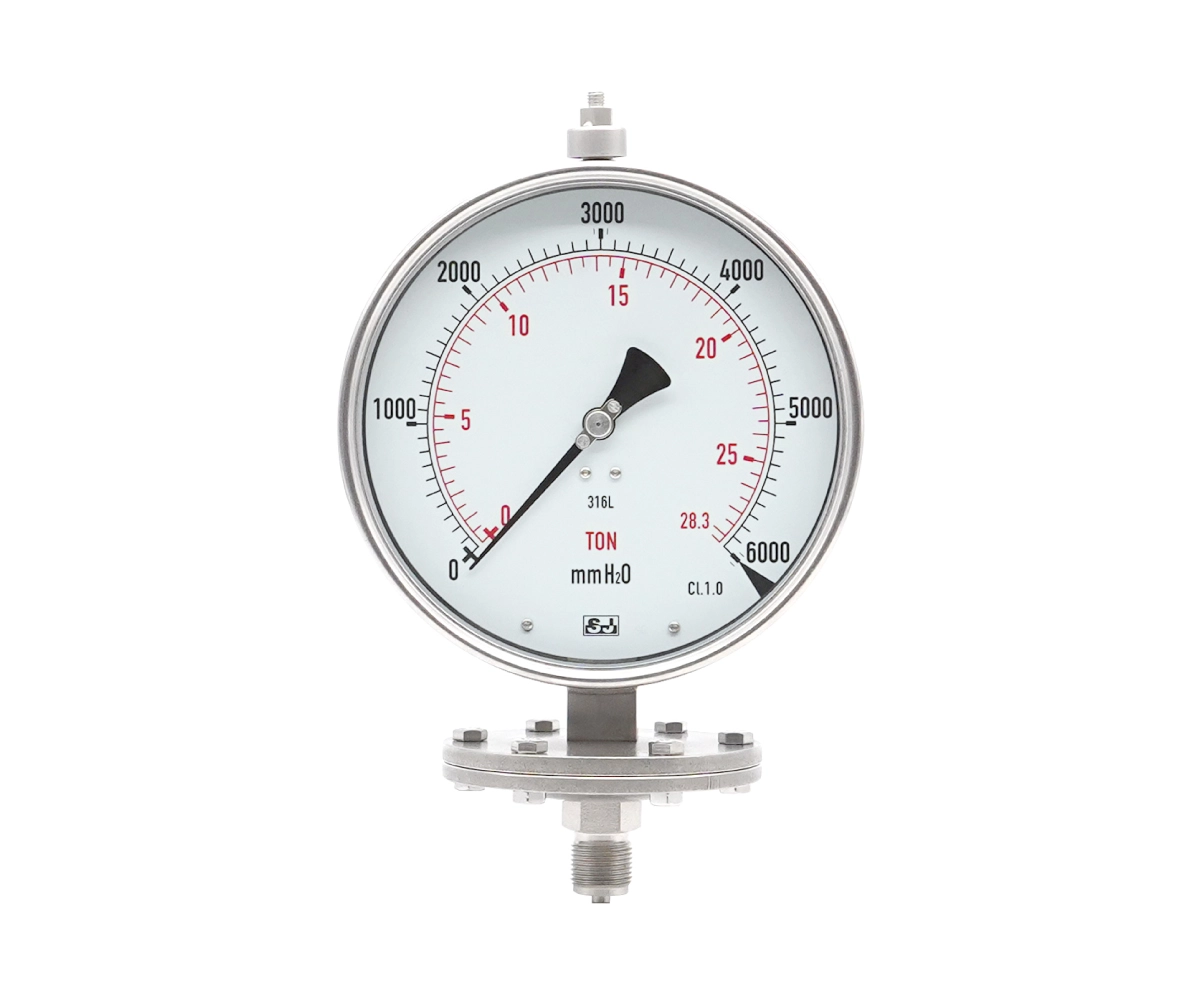

Low-pressure Pressure Gauge with Flange Connection and Tag

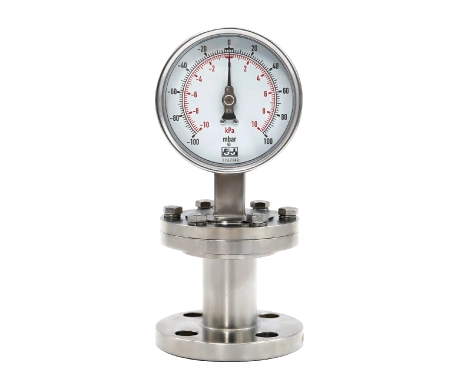

Low-pressure Pressure Instrument with Flange Connection

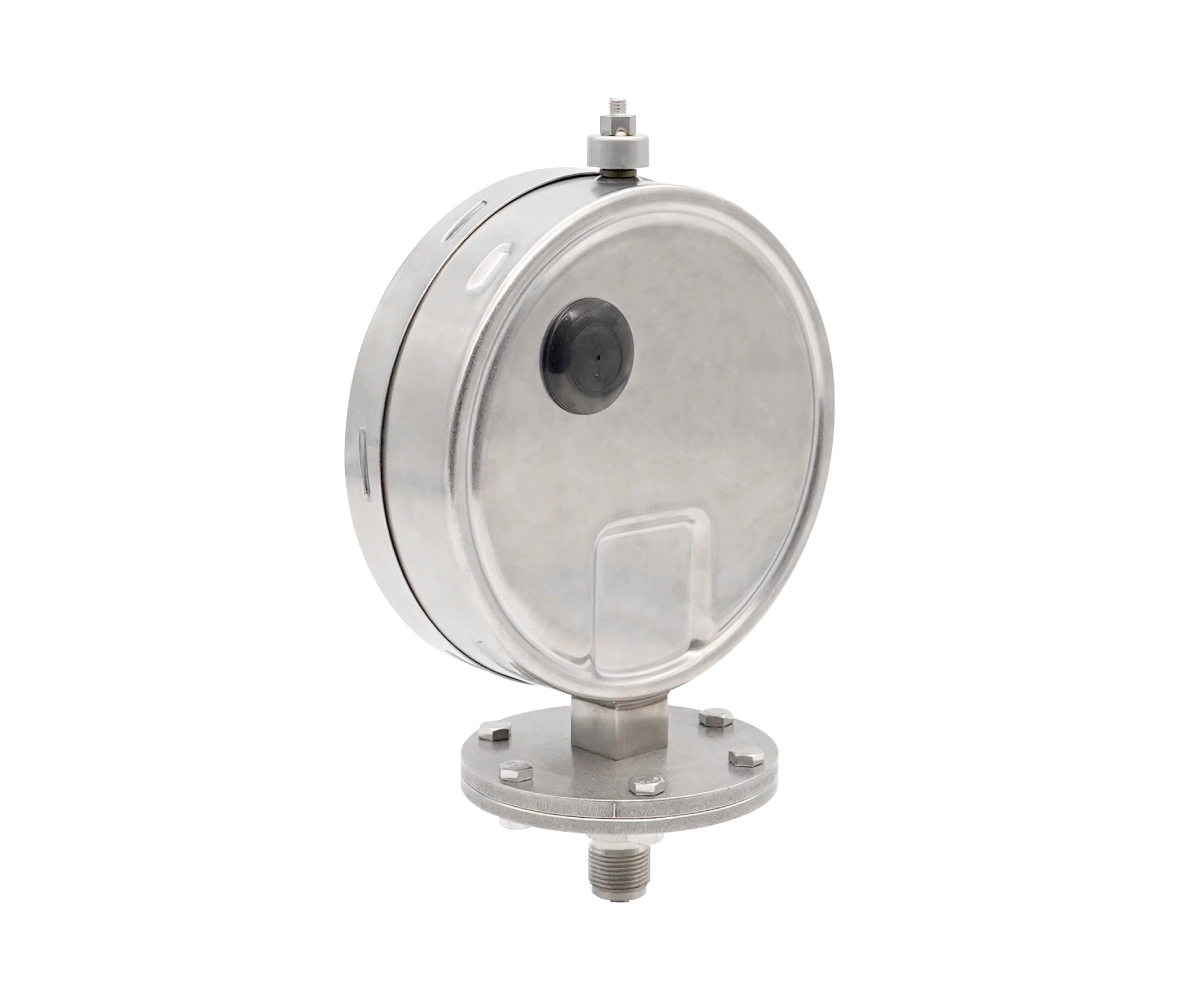

Low-pressure Pressure Instrument with Flange Connection, Back Side
