Differential Pressure Gauge, All-metal Media Chamber
Model:PRDC
คำอธิบาย:
- Feature a highly corrosion-resistant all-metal construction and measuring cell protected against tampering
- Used for pump monitoring and control, filter monitoring and level measurement
- For gaseous and liquid aggressive media that are not highly viscous or crystallizing, also in aggressive environments
- บริการตอบสนองหลังการขาย / การรับประกันที่ปรับแต่งได้ / คุณภาพสูง / การรับประกันหนึ่งปี
- ภาพมีไว้สำหรับการอ้างอิง ผลิตภัณฑ์จริงจะขึ้นอยู่กับข้อกำหนดที่กำหนดเองของคุณ
- อ่านเพิ่มเติม: 7 ขั้นตอนในการเลือกมาตรวัดความดัน
ดาวน์โหลดไฟล์
ข้อกำหนดผลิตภัณฑ์
左右尚有資訊
ตำแหน่งการเชื่อมต่อ | Lower mount |
---|---|
ขนาดเล็กน้อย | 4", 6" |
ช่วง | 0 ... 1.6 kPa to 0 ... 25 bar |
ความแม่นยำ | ±2.5% F.S. (standard), ±1.6% F.S. |
กระบวนการเชื่อมต่อ | 2 x G1/4, female |
กรณี/แหวน | 304 SS (standard), 316 SS |
หน้าต่าง | Safety glass |
ตัวชี้ | Adjustable pointer, aluminum, black |
ความเคลื่อนไหว | 304 SS |
Case filling | Without, glycerine, silicone oil |
Wetted part | 316 SS |
อุณหภูมิแวดล้อม | -20℃ ... 60℃ |
อุณหภูมิกลาง | -20℃ ... 100℃ |
IP rating | IP54 (standard) IP65 (for instrument with case filling) |

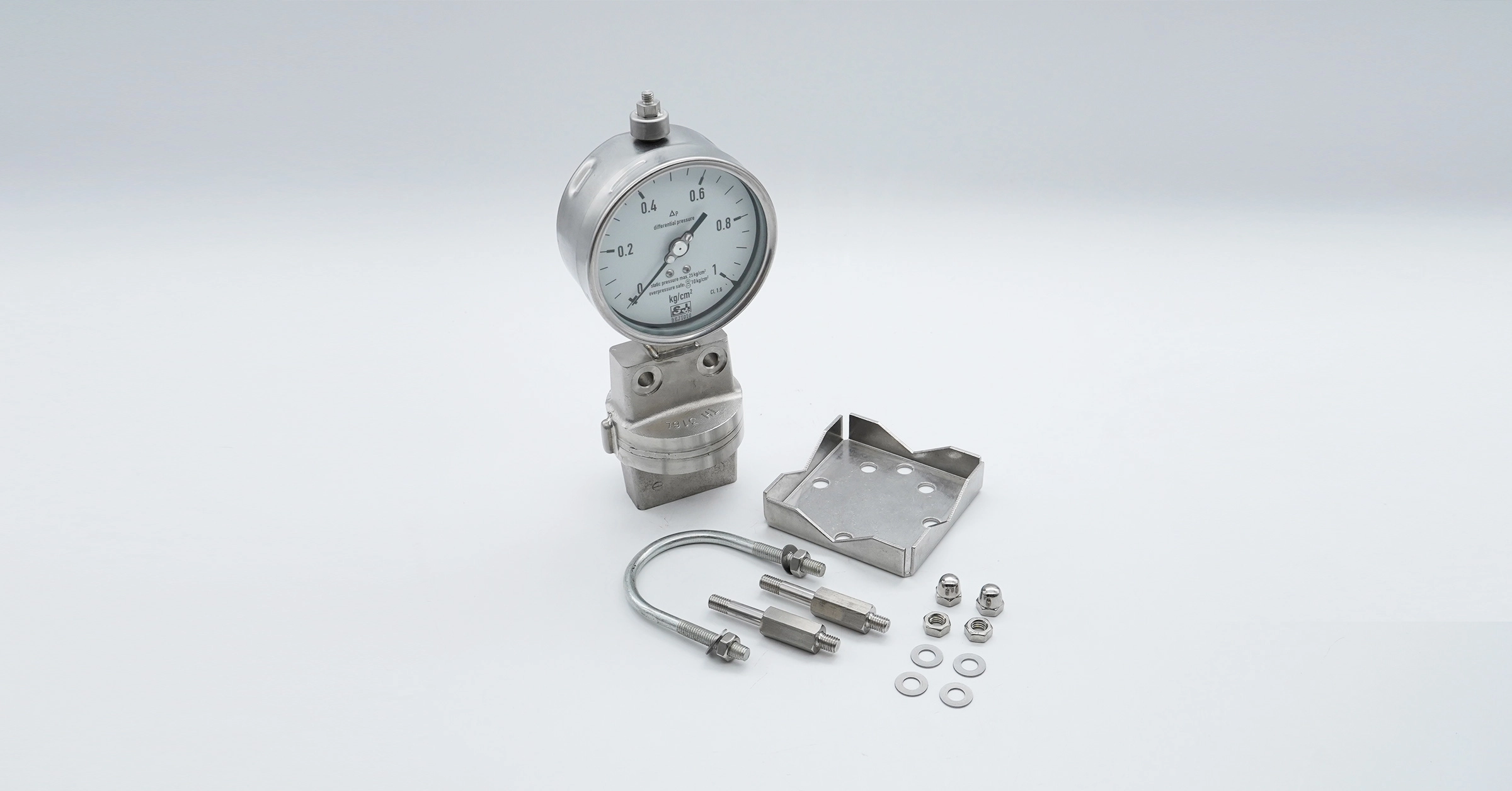

Accessories(Options) | With a blow-out device, with a compensating valve, valve manifold, mounting bracket for wall or pipe mounting |
