Differential Pressure Gauge, Differential Pressure Switch
Model:PRSMD
คำอธิบาย:
- Easy installation and no power supply needed
- Easily set the differential pressure switch values on the site
- Limited to non-flammable and non-corrosive gases
- Usually used in filter, fan, and duct pressure monitoring in building automation systems in the HVAC
- บริการตอบสนองหลังการขาย / การรับประกันที่ปรับแต่งได้ / คุณภาพสูง / การรับประกันหนึ่งปี
- ภาพมีไว้สำหรับการอ้างอิง ผลิตภัณฑ์จริงจะขึ้นอยู่กับข้อกำหนดที่กำหนดเองของคุณ
- อ่านเพิ่มเติม: 7 ขั้นตอนในการเลือกมาตรวัดความดัน
ดาวน์โหลดไฟล์
ข้อกำหนดผลิตภัณฑ์
左右尚有資訊
การเชื่อมต่อไฟฟ้า | Screw terminal |
---|---|
ช่วง | 20 ... 200 Pa, 30 ... 300 Pa, 40 ... 400 Pa, 50 ... 500 Pa, 100 ... 1000 Pa, 200 ... 1000 Pa, 500 ... 2500 Pa, 1000 ... 5000 Pa |
ความแม่นยำ | ±2% F.S. |
กระบวนการเชื่อมต่อ | 6.0 mm pipe; P1 high pressure port, P2 low pressure port |
วัสดุ | Main body: PC; cover: PC; diaphragm: silicone; contact: Silver |

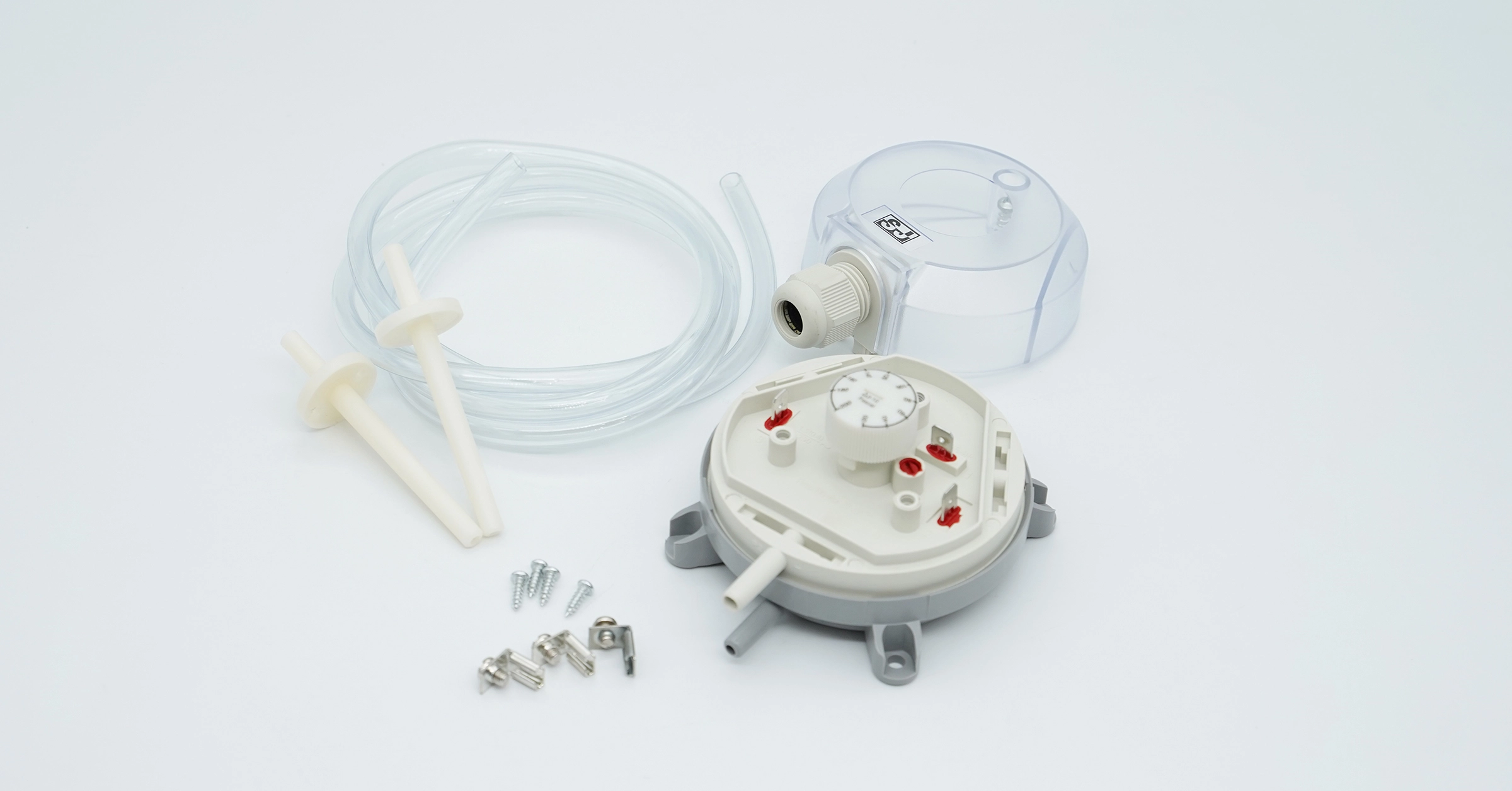

เครื่องประดับ | Equipped with a set of standard pressure connection components, including a 1.5 m transparent plastic hose, 2 plastic connectors, and 4 self-tapping screws. |
อุณหภูมิแวดล้อม | -40℃ ... 85℃ |
อุณหภูมิกลาง | -20℃ ... 85℃ |
Contact type | SPDT AC type max.: 1.5 A/250 VAC DC type max.: 1 A/30 VDC |
Maximum switching frequency | 6 times/minute |
Service life | Switch more than 106 times |
ระดับการป้องกัน | IP 54 |
Weight | With mounting bracket: 140 g Without mounting bracket: 90 g |
